Oil Well Casing Tools Float Collar Float Shoe For Cementing Small Size

Name: Oil Well Casing Tools Float Collar Float Shoe For Cementing Small Size
Brand: Puyang Zhongshi Group
Price: 1 USD

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~36"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : Shell for Float Shoe

Processing : Forging

Feature : PDC drillable

Material : P-110, K55, J55, N80,L80

Thread : API thread or as required

Size : 4 1/2"-20"

Contact Now

Oilwell casing tools float collar float shoe for cementing

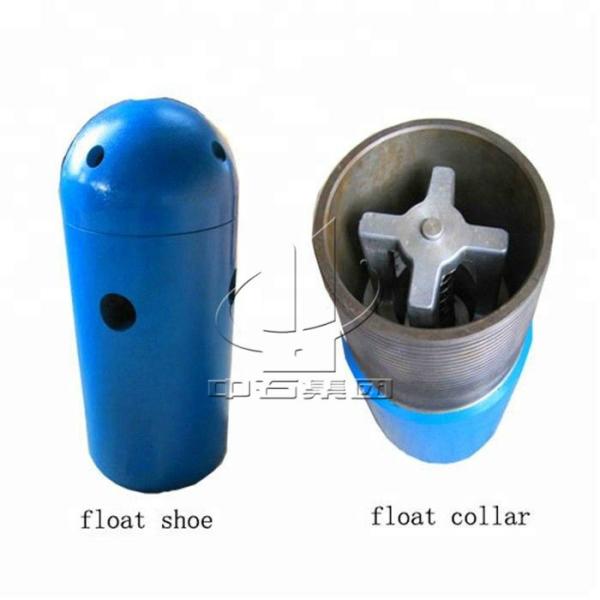

Non-rotating Float shoe attaches to the end of the casing string ,Non-Rotating Float Collar attaches to one or two casing joints above Float Shoe and they are use to stop slurry from flowing back.

Float Collar&Shoe serves as the backbone of casing equipment used during primary cementing operations.
It guides the casing to total depth and prevents contaminated mud from entering the casing. Also it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures greater accuracy of cement slurry displacement.
Non-rotating insert helps to engage the connecting plugs in it and locks the rotation when PDC drill bit is used.

Features

PDC Drillable.
Inverted Poppet valve has greater strength.
Can withstand high temperatures & pressure.
Non-Metallic parts prevent damage to PDC Drill Bit.
Controlled buoyancy-regulated by filling casing cum surface.
It is available in Single & Double Valve design.

Specification

Size (in)	Bore O.D (in)	Bore I.D (in)	Min.Bore Parameter (in)	Thread Type	Ib (in 2)
5 1/ 2”	6”	4 3/ 4”	2”	5 1/ 2” LCSG	4351
7”	7 5/ 8”	6 1/ 4”	2 3/ 8”	7” LCSG	3626
9 5/ 8”	10 5/ 8”	8 5/ 8”	2 3/ 8”	9 5/ 8” LCSG	3626
13 3/ 8”	14 3/ 8”	12 3/ 8”	2 3/ 8”	13 3/ 8” LCSG	3626
