Brand Name : Puyang Zhongshi Group
Model Number : 4 1/2"~36"
Certification : API,ISO,QHSE
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, MoneyGram
Delivery Time : depends on quantity
Packaging Details : Wooden Box
Product : Oilfield Guide Shoe with Drillable Aluminum Nose
Feature : Aluminum eccentric nose
Connection : API thread
Material : P-110, K55, J55, N80
Belt : With wear-band
Tungsten Carbides : Chunky Grain Type and Button Insert Type
Oilfield Guide shoe with Drillable Aluminum Nose
Reamer shoe system is a casing shoe that overcomes wellbore obstructions to guide casing or liners to total depth
Size (in) | Bore O.D (in) | Bore I.D (in) | Min.Bore Parameter (in) | Thread Type | Ib (in 2) |
5 1/ 2” | 6” | 4 3/ 4” | 2” | 5 1/ 2” LCSG | 4351 |
7” | 7 5/ 8” | 6 1/ 4” | 2 3/ 8” | 7” LCSG | 3626 |
9 5/ 8” | 10 5/ 8” | 8 5/ 8” | 2 3/ 8” | 9 5/ 8” LCSG | 3626 |
13 3/ 8” | 14 3/ 8” | 12 3/ 8” | 2 3/ 8” | 13 3/ 8” LCSG | 3626 |
![]() |

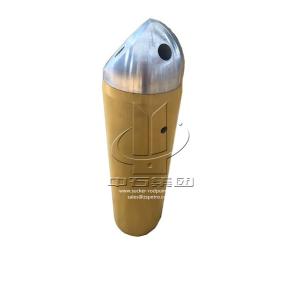

Oilfield Guide Shoe With Drillable Aluminum Nose Images |
